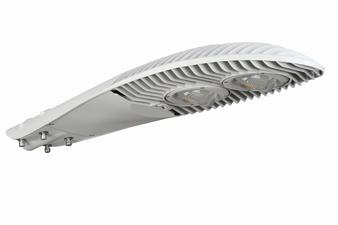

TUV COB Inscrite LED Street Lights

TUV COB Inscrite LED Street Lights

Power: 30-180W

Voltage: 90-305VAC

Lumens: 3000-18000lm

Color: 2700-3500K/3500-5500K/5500-6500K

Beam Angle: 130°/140°

Warranty: 60 Months

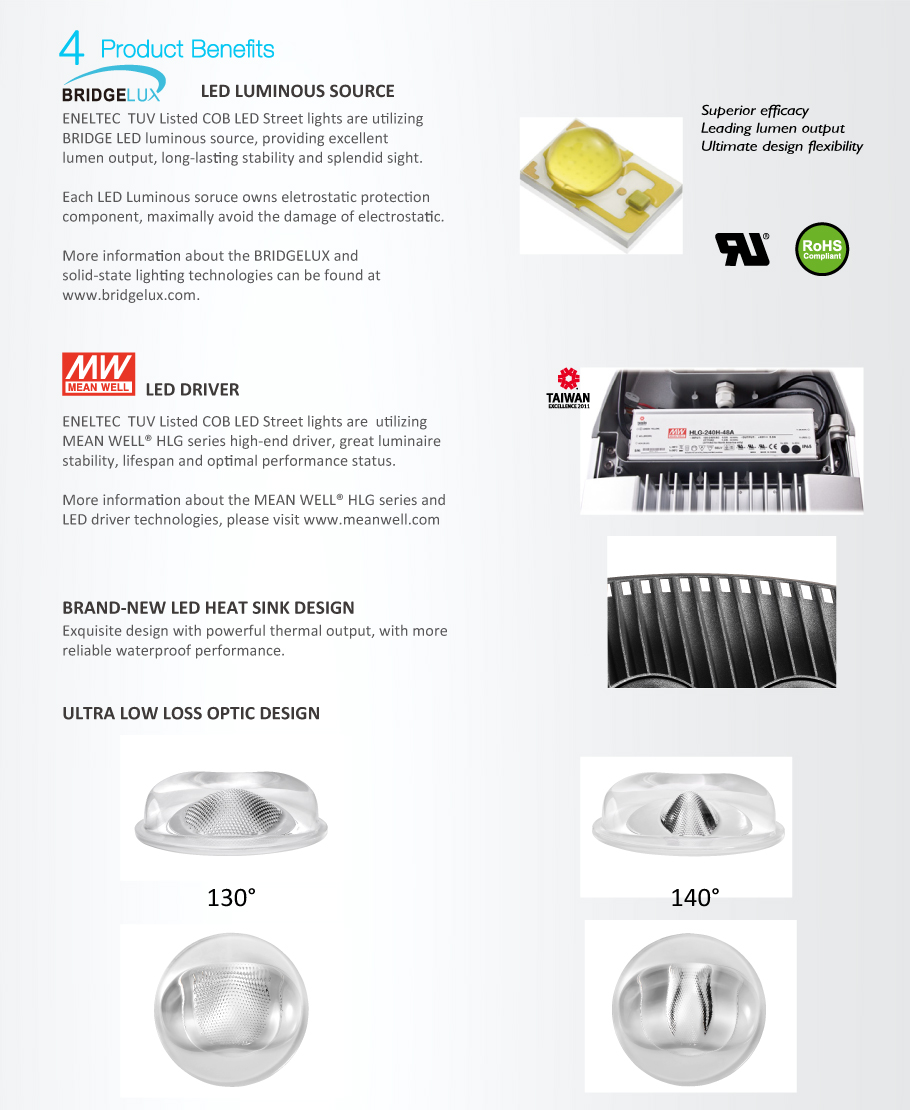

Product Overview:

Un nouveau design élégant avec module Eneltec 3ème génération, plus efficace BRIDGELUX LED la source lumineuse et le pilote haute fiables MEAN WELL LED rendre les produits éclairage le plus rentable LED disponibles aujourd'hui.

TUV COB Inscrite LED Street Lights

TUV COB Inscrite LED Street Lights

TUV COB Inscrite LED Street Lights

TUV COB Inscrite LED Street Lights

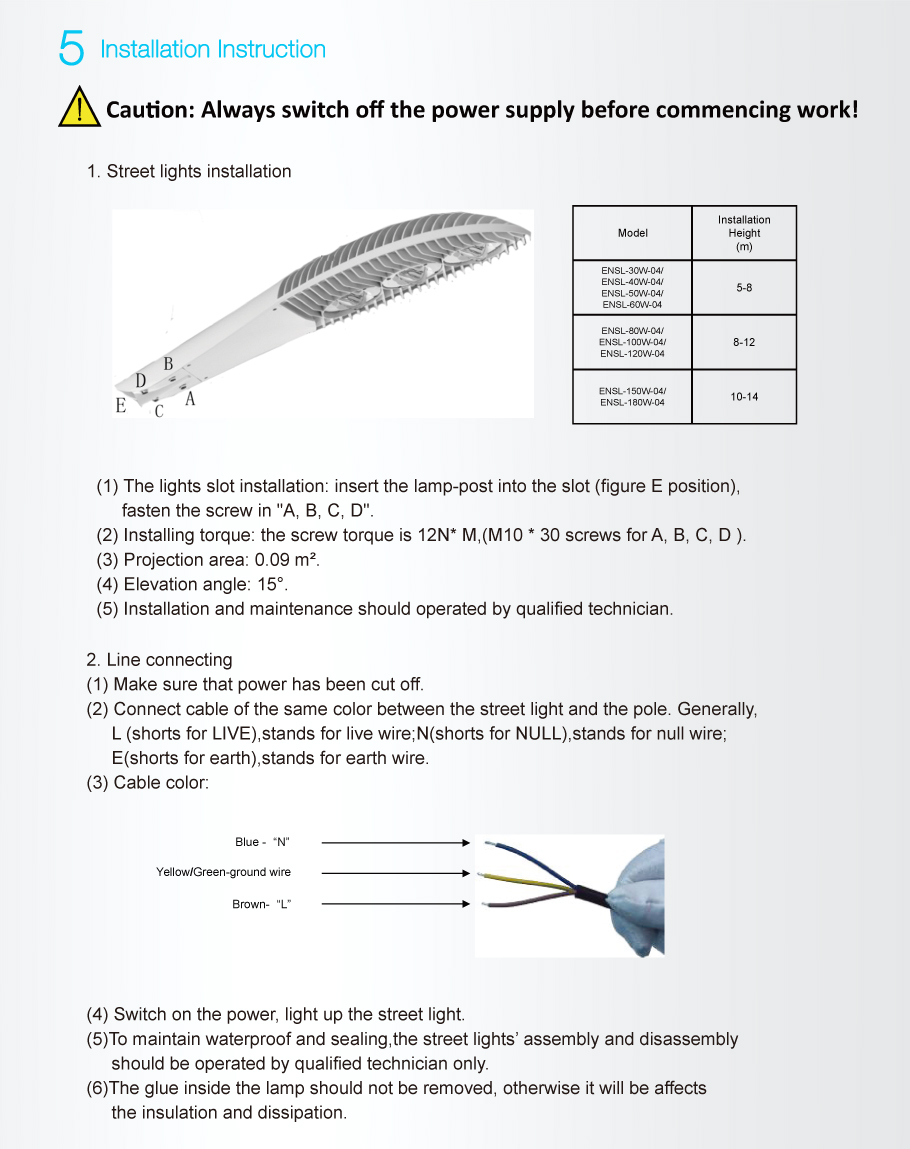

TUV COB Inscrite LED Street Lights instructions d'installation:

(1) L'installation de feux emplacement: insérer le lampadaire dans la fente (figure position E), serrer la vis dans "A, B, C, D".

(2) Installation de couple: le couple de serrage est 12N * M, (M10 * 30 vis pour A, B, C, D).

(3) Zone de projection: 0,09 m.

(4) Angle d'élévation: 15 °.

(5) Installation et maintenance devraient exploité par un technicien qualifié.

Specifications:
No. Pictures Model No. Power
(W)		 Lumen Output
(LM) 		 Beam
Angle		 Input
Voltage		 Color
1 　TUV COB Inscrite LED Street Lights ENSL-30W-04 30 3000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
2 　TUV COB Inscrite LED Street Lights ENSL-40W-04 40 4000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
3 　TUV COB Inscrite LED Street Lights ENSL-50W-04 50 5000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
4 　TUV COB Inscrite LED Street Lights ENSL-60W-04 60 6000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
5 　TUV COB Inscrite LED Street Lights ENSL-80W-04 80 8000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
6 　TUV COB Inscrite LED Street Lights ENSL-100W-04 100 10000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
7 　TUV COB Inscrite LED Street Lights ENSL-120W-04 120 12000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
8 　TUV COB Inscrite LED Street Lights ENSL-150W-04 150 15000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
9 　TUV COB Inscrite LED Street Lights ENSL-180W-04 180 18000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
